Κωδικός προϊόντος: PM3019FSMC Κατηγορία:

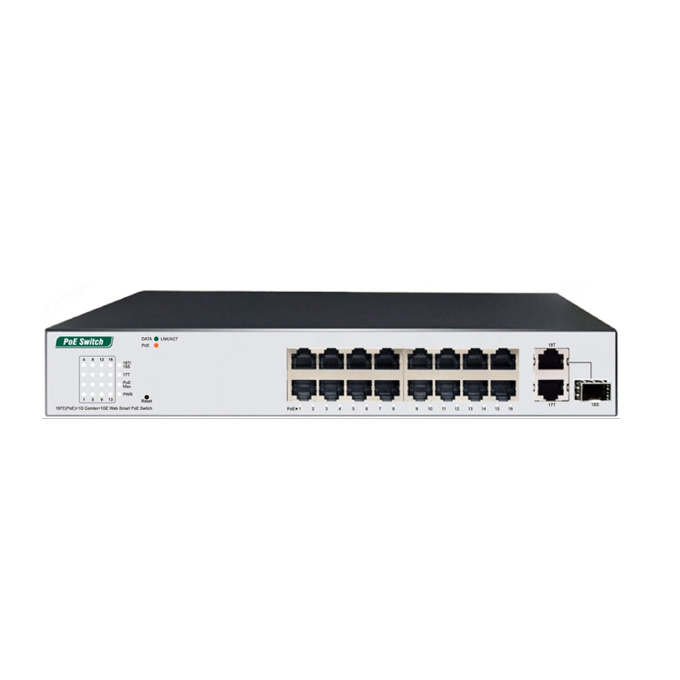

16-Port WEB SMART POE SWITCH PM3019FSMC V1

Login to see prices
UNIPOE

  • 16+2 ΘΥΡΕΣ
  • 10/100/1000Mbps

16X 10/100Mbps (RJ45)
1X 1000Mbps combo port
1X 10/100/1000Mbps Upilink port

16-Port WEB SMART POE SWICH PM3019FSMC V1

PM3019FSMC V1 has 16*10/100Mbps adaptive RJ45 ports, 1*1000Mbps Combo port and 1* 1000Mbps RJ45 port, and each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding. Among them, ports 1-16 have PoE power supply function, support IEEE802.3af/at standard, the maximum power of the port can be up to 30W, and can be used as Power over Ethernet devices, which can automatically detect and identify the powered devices that comply with the standard, and supply power to them through the network cable. This product is simple and convenient to use, no need to configure, can meet the Enterprise, Community, Hotel, Office Network and Park Network Networking and access requirements.

Product Features

IEEE802.3at standard compliant IEEE802.3af electrical receiving device (PD)

Single port output power up to 30W

Automatic detection and identification standard PoE power receiving devices, intelligent power supply, does not burn non-standard PoE power receiving devices or common devices

Port power supply priority is supported to ensure continuous power supply for key nodes on the network

Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control

Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression

It supports WEB management, which is simple and efficient, and easy for engineering and maintenance

personnel to install and debug.

Supports port traffic statistics, port monitoring, cable detection, and loopback protection

Panel indicators monitor working status and assist in fault analysis

Intelligent identification of wire speed forwarding

Data exchange adopts store-and-forward mode

Operating temperature: 0°C ~ 40 °C

PD-Alive This function is disabled by default and can be customized;

Mainboard, Power supply, PoE (three in one PCBA).

Κωδικός προϊόντος: PM3019FSMC Κατηγορία:
Βάρος 2 kg
Διαστάσεις 2.8 × 4.8 × 4.4 cm
ΘΥΡΕΣ SWITCH

16

POE

NAI

ΤΑΧΥΤΗΤΑ ΔΥΚΤΙΟΥ

10/100 Mps, 10/100/1000 Mbps

ΚΑΤΑΣΚΕΥΑΣΤΗΣ
