ΚΑΡΤΑΝΑΓΝΩΣΤΗΣ UHF ΜΕΓΑΛΗΣ ΕΜΒΕΛΕΙΑΣ- Topvision Security Systems

Working frequency	National standard (920~ 9251Hz)
	American standard (902~ 928MHz)
	European standard (865~ 868MHz)
	Other multinational frequency standards (customized)
Recognition distance	>25 meters
Group reading performance	>200 tags
Tag protocol	Support IS01 8000-6B, IS018000-6C (EPC GEN2) protocol electronic tags
Frequency hopping mode	Broad spectrum frequency hopping FHSS) or fixed frequency, can be set by software;
Working mode	Active mode, response mode, passive mode, etc.
RF power	0-33dBm (power software adjustable)
Antenna parameters	9dBi linear polarization antenna (built-in)

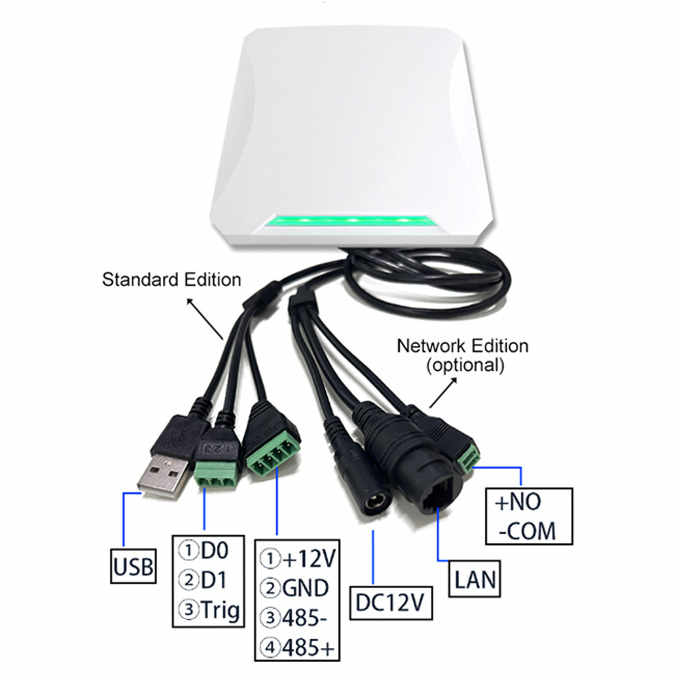

Supported interface	Standard RS485, Wieg and26, Wieg and34, USB, optional RJ45, WIFI, GPRS, etc.
Working voltage	+12V
Recognition prompt	Buzzer or LED flashing
Power consumption	<12W
Working temperature	-20℃ ～ +70℃ (customization required if out of range)
Working humidity	20％～ 95％ (no condensation)
Storage temperature	-40℃ ～ +125℃
Appearance/packaging size	26026070mm/ 35526080mm
Net weight	2400G
Gross weight	3700KG
Secondary development	Provide dynamic link library (DLL) and demonstration software source code to support secondary development.
Remarks	The recognition distance and group reading performance depend on the tag performance and specific application scenarios, and can be customized as required

Κατηγορία: ΚΑΡΤΑΝΑΓΝΩΣΤΕΣ

ΚΑΡΤΑΝΑΓΝΩΣΤΗΣ UHF ΜΕΓΑΛΗΣ ΕΜΒΕΛΕΙΑΣ 20m
